Fire Safety PIB Plans

A fire safety floor plan is a detailed diagram displaying emergency exits, fire extinguishers, alarm points, and escape routes for a specific floor. It helps occupants quickly locate safety equipment and navigate to safe areas during emergencies, ensuring effective evacuation and compliance with fire safety regulations.

Speak to an expert
Ventro-50

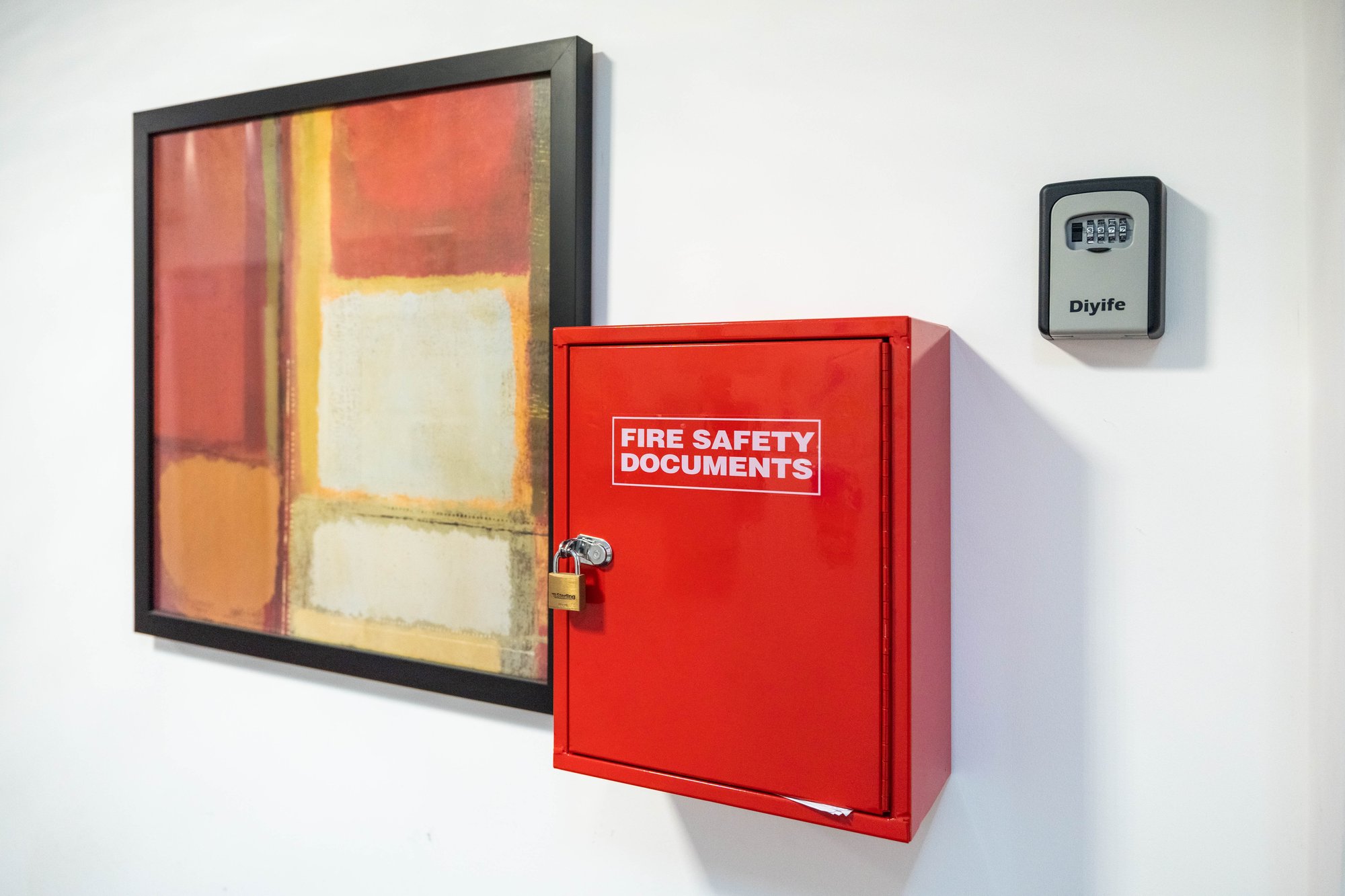

What Should the Emergency Response Pack Include?

  • Log Book for recording the event associated with the PIB
  • An 'Off The Run' notice that details any non-operational fire safety equipment
  • Orientation Plan, showing the location of the building in relation to surrounding buildings and water supplies for firefighting equipment such as; hydrants, wet riser supplies, etc. Building layout plans showing the internal layout and up-to-date floor plans
  • Summary of information useful to the Fire & Rescue Service on arrival at the incident
  • A simple layout of plans showing facilities of particular relevance to operational firefighting
  • Personal Rescue Emergency Plans (PREPs) for residents with mobility, cognitive or sensory impairment
  • A list and description of significant fire safety issues such as; compartmentation, external wall systems or other issues which may effect the behaviour of the fire
  • A description of the current fire strategy e.g, stay put policies, simultaneous evacuation

It is down to the accountable person to ensure the PIB is maintained and inspected by a competent person so that there is reduced risk of faults in the instance of a fire.

There are recommended review processes that include:

  • Post-incident checks
  • Monthly checks
  • Annual checks
ventro photos-89
ventro photos-78

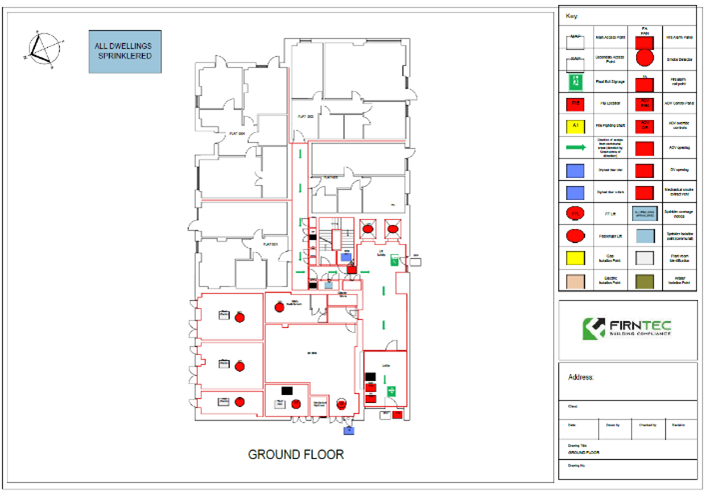

What does a PIB Floor Plan look like?

To the right is an example of how one should look. The key on the plan will include some of the following:

  • Main Access Point
  • Secondary Access Point
  • Final Exit Signage
  • PIB Location
  • Fire Fighting Shaft
  • Dry/Wet Riser Inlet
  • Gas/Electric Isolation Points
  • Smoke Detectors
  • AOV OR/AOV PAN
  • Sprinkler/Water Isolation Points
PIB-Floor-Plans
